• Automated Trephine System for perforating keratoplasty

• Trephination of Patient and Donor eyes as well as corneo-scleral discs with separate instrumentation sets

• Cutting depth pre-adjustable for the patient

• Multiple diameter cutter sets included

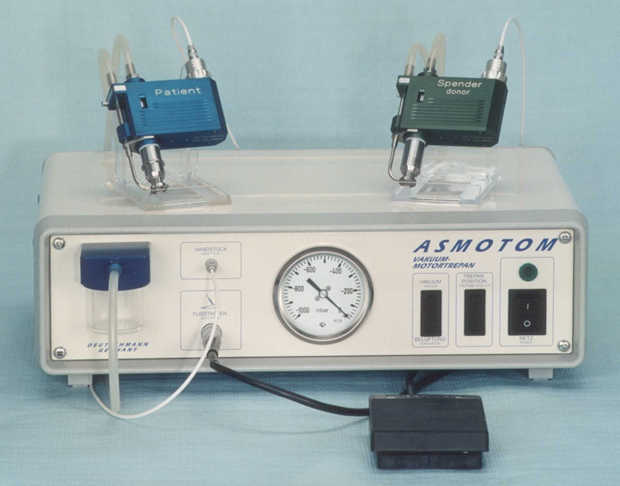

The ASMOTOM ATS

A revolutionary Motorized Vacuum Trephine System for perforating keratoplasty

• The ASMOTOM uses an innovative double fixation. Vacuum is applied to both, the central and the peripheral section of the cornea.

• A new feature allows the cutting depth to be preset using offset rings.

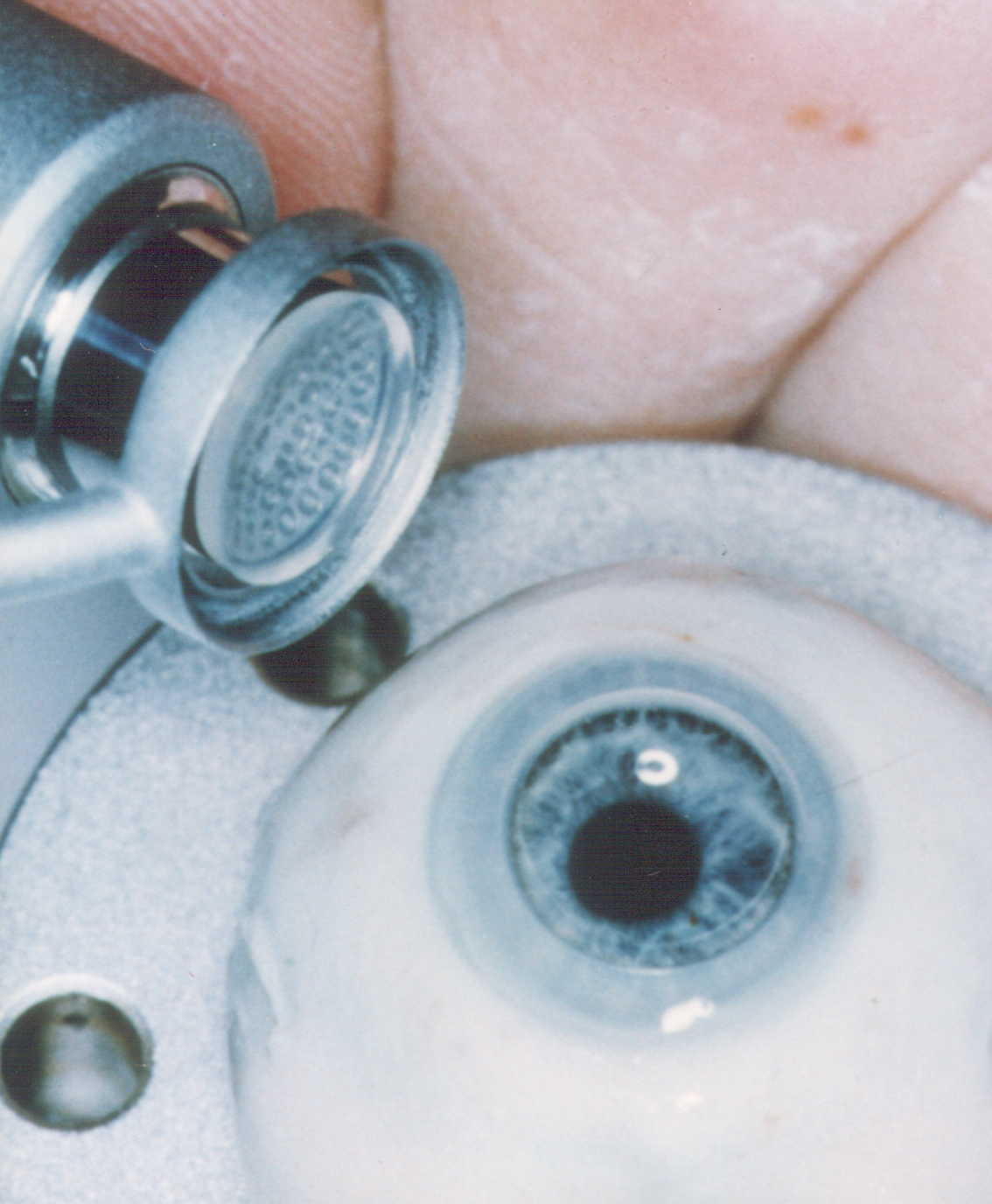

• The trephine rotates between the two concentric areas of fixation, using an automatic feed. Once the preset depth is reached, the cutter retracts back into its initial position, holding on to the separated central portion.

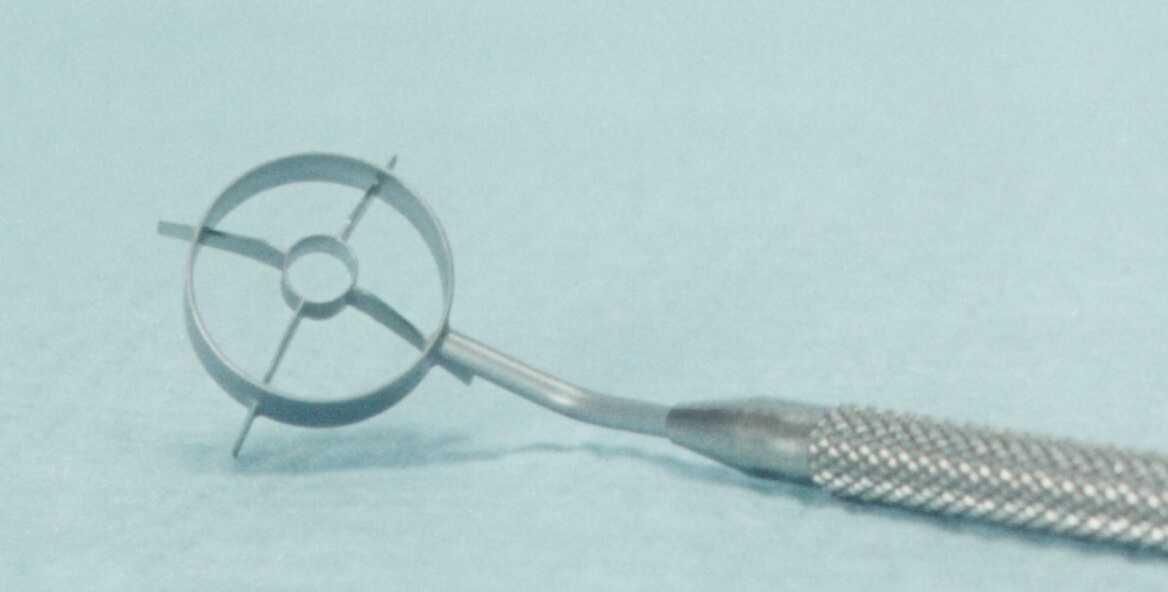

• Easy centering using the new ASMOTOM MARKER
• Pre adjustment possibility for cutting depth
• Double suction principle provides secure fixation
• No need for anterior chamber maintainer
• Precise cutter feed produces perfectly straight edges
• Faster healing due to straight cuts
• Less induced astigmatism
• There is no need to apply pressure to the cornea
• Reduced chance of iris damage
• Gentle on endothelial cells, due to effortless cut
• Better post operative results

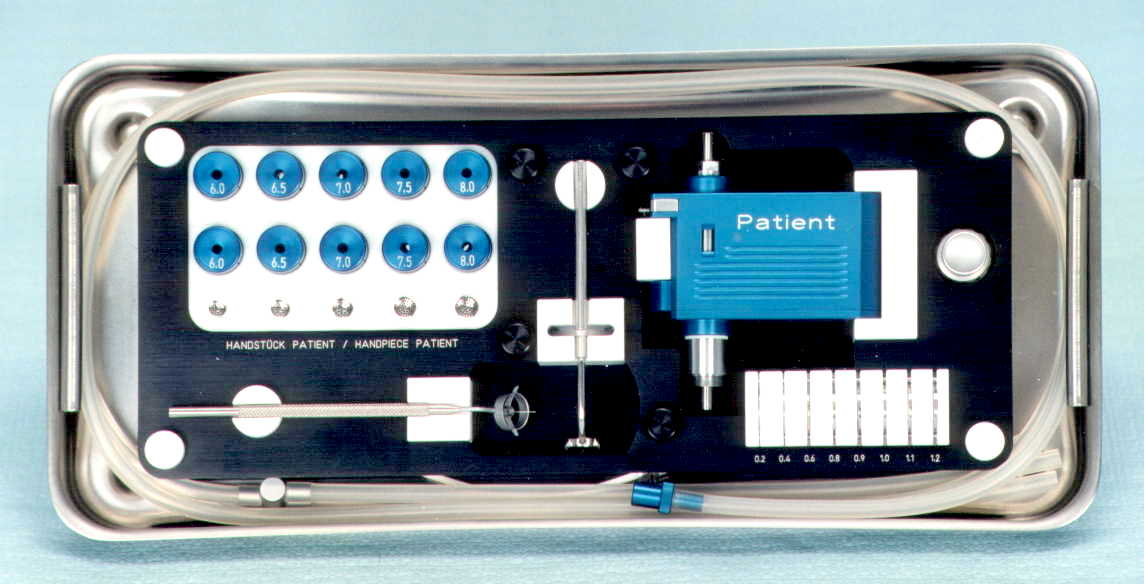

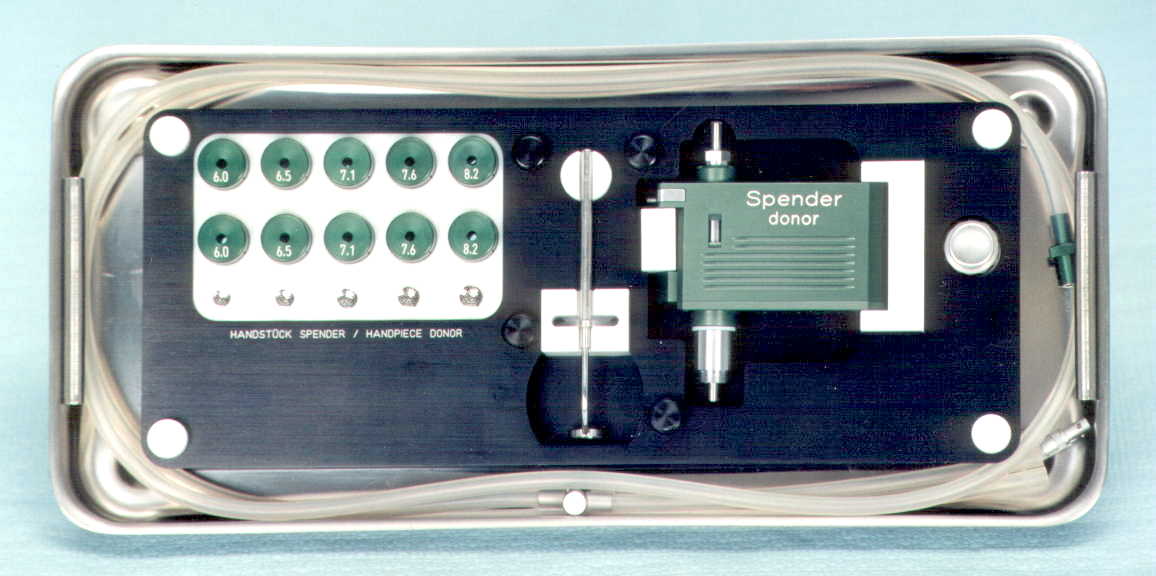

• Color coded hand piece sets for patient and donor
• Complete hand piece sets include two trephines for each of five different diameters from 6,0 to 8,2 mm

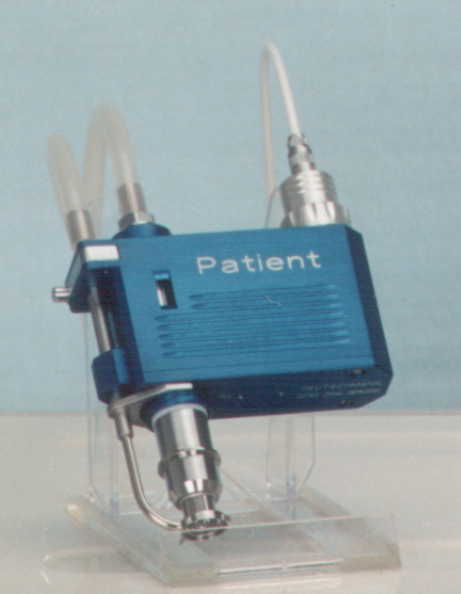

Completely assembled Patient hand piece

The ASMOTOM received FDA 510(k) approval. It is available for sale in the USA.

The ASMOTOM can also be rented by day, week or month at costs lower than using disposable systems.
